POS Terminal

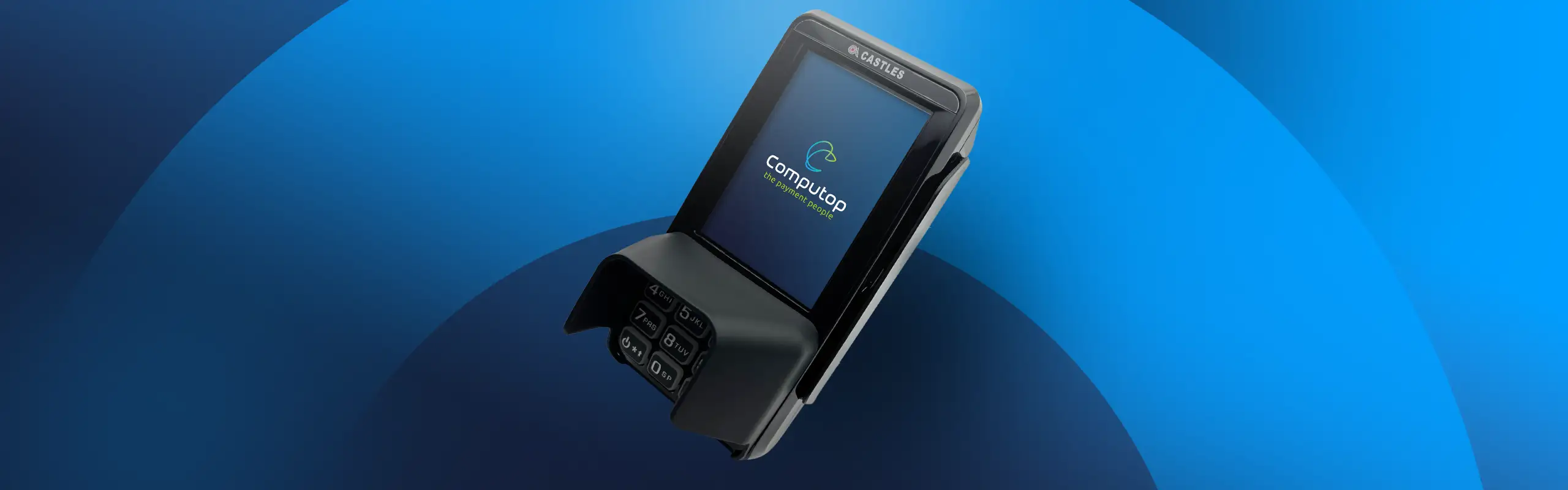

V3 PIN Pad

Designed with convenience, security, and simplicity in mind, V3 PIN Pad delivers all functions, merchants need to operate efficiently.





HIGHLIGHTS

  • Touch screen with built-in NFC reader
  • High security processor & Linux platform
  • Optimizes checkout process
  • Higher customer output
  • Extremly fast transaction processing

TECHNICAL SPECIFICATIONS

Processor
32-bit Secure micro processor running powerful Linux based OS


MEMORY
256 MB Flash / 128 MB RAM


DISPLAY
3.5” Color TFT LCD, Touchscreen, 320 x 480 Pixels


CARD READER MAGNETIC STRIPE
Magnetic Stripe: ISO 7810, 7811, 7813 Triple Track, Bi-Directional
Contact Card Reader: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1
Contactless: ISO 14443 Type A, B | ISO 18092 NFC | Mifare and Sony FeliCa, Working Frequency 13.56MHz


PAYMENT CARDS
all EMV Level 1 compatible chip cards (ISO7816), 3 Tracks

COMMUNICATION INTERFACE
Wire: Ethernet | RS232


SOFTWARE UPDATE
Automatic Remote Update


KEYPAD
15 standard keys


POWER SUPPLY
DC 9V/1A


HOUSING
Black plastic


DIMENSIONS
With privacy shield: 150 x 78.5 x 68 (mm)
Without privacy shield: 150 x 78.5 x 39 (mm)

WEIGHT
With privacy shield: 250g
Without privacy shield: 225g


OPERATING SYSTEM
Linux


APPROVALS, CERTIFICATIONS
EMV Level1/Level2 | TA 7.2 Addendum 5, DCPOS 3.0 Errata | ep2 | PCI-PTS 5.x | TQM | JBC J-Speedy | FeliCa | Interac Flash | Union Pay UICS | Discover D-PAS | MasterCard PayPass | Visa payWave | American Express expresspay


ECR INTERFACE
ZVT-LAN | OPI


AMBIENT CONDITIONS
Storage temperature: -20 to 70° C
Operating temperature: 0° to 50° C
Storage humidity: 5% bis 90% non-condensing
Operating humidity: 5% bis 90% non-condensing

SUPPORTED PAYMENT METHODS
